This page covers the following:
- Stock Types
- Stock Styles and the LAW483 Model Number System
- Recoil Pad Options
- Butt
Pitch Options
- Wood Options
- Laminate Options
|
|
Stock Types
|
|
We have Four Different
Stock Types: M14 Field-Match Stocks (FM) - We hand fit our "Field-Match"(TM) stocks to your rifle using our "Unitized Stock-Liner"(TM)
- Your rifle will be "Field Strippable"
as the bed-in-place steel stock-liner gives durability and accuracy.
- NM
Stock Ferrule with clearance for the Barrel Band
- If
you don't have a Unitized Gas Cylinder, the Barrel band with be NM Modified and shimmed
- Stock is designed with proper "barrel draw"
- Hand-guard is NM modified for proper clearance and Match Fit
M14 Range-Match Stocks (RM) - We hand fit our "Range-Match"(TM) stocks to your rifle using tradditional bedding. Excessive field stripping is not recommended.
- NM Stock Ferrule with clearance for the Barrel Band
- If you don't have a Unitized Gas Cylinder, the Barrel band with be NM Modified
and shimmed
- Stock is designed with proper "barrel
draw"
M1 Range-Match Stocks (RM) We hand fit our "Range-Match"(TM) stocks
to your rifle using tradditional bedding. Excessive field stripping is not recommended. Stock is designed with proper "barrel
draw" Hand-guard
is NM modified for proper clearance and Match Fit
V14-06 Range-Match Stocks (RM)
for LOSOK Valkyr and M14-06 Rifles- We hand fit our "Range-Match"(TM) stocks
to your rifle using tradditional bedding. Excessive
field stripping is not recommended.
- NM Stock Ferrule with clearance for the Barrel Band
- If you don't have a Unitized Gas Cylinder, the Barrel band with be NM Modified and shimmed
- Stock is Free Floated per LOSOK 's design
|
LAW483 Model Number System |
|
M1 = M1 Garand or Shuff's
Mini-G M14 = M14 Semi Auto or M1A V14-06 = LOSOK Valkyr or M14-06 Black = Currently Available Green
= Nearing Completion Blue = In Progress Red = Planned Spot Empty = Planned, but time-frame will depend on number
of serious inquiries. XXXXX = Not Planned R = Right Hand Only / L = Left Hand Only (FM) = Field-Match; Field Strippable, has metal unitized stock liner (RM) = Range-Match; Tradditional Bedding
If you know which model stock that you want
to order a stock please go to that stock page and fill out the form provided. Don't worry, details can be changed. If your not sure which stock design you prefer and have questions about which way to go please review
the information on this page and fill out the form at the bottom. |
|
LAW483 M1 M14 V14-06
|
Forend
Profile
Designed for this barrel or model
|
SOCOMs, Scout's, and Standards
|
Loaded and National Match Models or other Medium Heavy
Barreled Rifles
|
Super Match and Heavy Barrels
|
Loaded, National Match, and Super Match, and other Medium
and Heavy Barrels
|
All models and barrel sizes, but cant use lugged receiver
|
Extended Magwell
All models and barrel sizes, but cant use lugged receiver
|
All models and barrel sizes, but cant use lugged receiver
|
All models and barrel sizes, but cant use lugged receiver
|
|
Buttstock/Grip Configuration
|
Purpose & Comments
|
Hunting, 3-Gun, Run & Gun, CQB, Home Defense, General
Purpose, EBR
|
Long Range Hunting, Precision out to 600m, 3-Gun Longer
range emphasis, General Purpose, EBR
|
Precision out to 1000m, Long Range Hunting,
|
Mutli-Position Target, Long Range Target
|
CQB, Any Range Precision, General Purpose, EBR
|
CQB, Any Range Precision, General Purpose, EBR
|
CQB, Any Range Precision, General Purpose, EBR
|
CQB, Any Range Precision, General Purpose, EBR
|
|
C Classic Stock
|
Classic stock look but we add our touches; selectors filled
|
V14-06C1(RM)
|
|
|
XXXXX
|
XXXXX
|
XXXXX
|
XXXXX
|
XXXXX
|
|
|
Cali-Compliant Tactical/Target Grip, Butt Profile
varies with Forend Profile
|
M14H1(FM)
|
|
M14H3(FM)
V14-06H3(RM)
|
|
|
|
|
|
|
|
Enhanced M14E2 Style, Tactical Ergonomics, Grip
Style and Butt Profile varies with Forend Profile
|
|
|
V14-06P3(FM)
|
|
|
|
|
|
|
R Replica Stock
|
These are GI Replicas. The selectors are
filled, and they can use a M1 Buttplate.
|
|
XXXXX
|
|
XXXXX
|
XXXXX
|
XXXXX
|
XXXXX
|
XXXXX
|
|
|
Grip Style and Butt Profile varies with Forend
Profile
|
|
|
|
V14-06T5R(RM)
|
|
|
|
|
|
|
Grip Style and Butt Profile varies with Forend
Profile
|
|
|
|
|
|
|
|
|
|
|
Handguard Options:
We have different profile wood/laminate handguards to match different profile forends. |
|
Photo Not Available
|
# 0 is derived from the original GI wood handguard.
It's a little thinner than our #1 Forend and fits well over standard Barrels. It can be made to fit over the Medium
Weight Barrels as well, but it's not recommended for the Heavyweight Barrels. This Handguard is good with any profile
stock as long as you're not using a Heavy Barrel. |
|
Photo Not Available
|
#1 handguard is designed to match our #1 forend
profile. Its a little wider toward the rear of the handguard. |
|
Photo Not Available
|
#2 handguard is designed to match our #2 forend profile. Its a little wider toward the rear of the
handguard; however, it's designed with the ability to go over Medium and Heavy Barrels. |
|
Photo Not Available
|
#3 handguard is designed to match our #3 forend profile. Its a wider toward the rear of the
handguard; however, it's designed with the ability to go over All Heavy Barrels. |
|
Photo Not Available
|
#5 handguard is designed to match our #5 forend profile; it is essentially the same as the #3. Its
a little wider toward the rear of the handguard; however, it's designed with the ability to go over All Heavy Barrels. |
|
Photo Not Available
|
#6 handguard is designed to match our #6 forend profile. It matches the straight non-tapered forend,
has a Trapazoidal Cross-Section, and is designed with the ability to go over All Barrels. |
Recoil Pad
Options: Our pads come standard in Black. If Brown is desired, please specify in the remarks section
of the order form. |
|
|
Pachmayr SC100 Recoil Pad SC100 is best for "Snapping In" and pulling quickly
on target as the hard insert in the heel of the pad makes it glide through clothing. The pad is flat with a leather
texture. This pad is best for CQB, patrolling, "Fire and Maneuver", or hog hunting where the target
is moving quickly and quick close snap shot is required. If you are not sure which pad to get, I suggest this pad. |
|
|
D550 is best for static positions or when the pad never
leaves your shoulder. The pad is convex looking at it from the side with an aggressive serrated pattern that grips well.
This is a great pad for precision work, but It's horrible for pulling quickly on target as it will snag on your clothing.
If this is going on a sniper-type rifle that will only be fired from a static supported position then this is a great
pad. It's the best prone pad. |
|
|
Pachmayr D750B Recoil Pad D750B is a great overall field pad. It's slightly
convex from the side and from the top. It's going to snag on your clothing when pulling on target, but not as bad as
the D550. This pad is great for deer hunting or "Across the Course" where
you will slowly and deliberately pull on target from multiple positions. |
Butt Pitch
Options: We offer two basic pitch (Butt Angle) options. |
|
|
Zero Pitch means the face of the Butt forms a 90 degree
angle with the bore of the rifle. This is our standard offering and is generally recommended if your rifle is primarily
used from the prone posistion. Zero Pitch is required if we are installing a Butt Stock Spacer System. Also, some
prefer the aesthetics of the Zero Pitch. |
|
|
Our M-4/M-14 Pitch is a Five Degree Negative Pitch.
This means the Toe of the Butt will be closer to the grip than the heel; in other words, it has an inward angle. Most
standard military rifles have this pitch including the current military version of the M-4 Carbine as well as the original
stock on the M-14 Rifle. The advantage of the Negative Pitch is that the butt sits on the shoulder area with more surface
contact. This pitch does not lend itself well to a spacer system. This is the better Pitch to have if you
are primarily firing from the standing position or if you are shooting and moving. |
|
|
Sometimes customers have something different in mind,
maybe even a Positive Pitch. Please let us know if you prefer a different Buttstock pitch; please allow a 1-2 Degree
Tolerance as without you there it may be difficult to duplicate how you were measuring. |
|
|
We have several wood options
1. Solid Wood: We order Walnut, Maple, and Myrtle Wood on
a regular basis. This wood varies greatly in figure and grain contrast. Unless specified we don't promise
a particular grade of wood; however, we always try to pick nice looking wood as close to what you want as possible and stay
within your budget. 2. Extra Fancy Solid Wood
+$$$: If desired and the customer is willing to pay for premium wood we can order more expensive grades
of wood. If you're building an heirloom, this may be the best choice, but be prepared to spend up at lest $100 more
and possibly several times that. Most of the time this grade of wood is only purchased to fulfill a particular customer's
order; we generally don't keep this on hand due to costs. 3. In-House
Special Laminates +$$$: We run across different woods that are not thick enough to make into a stock by
itself, but when combined with several layers of the same or different woods can yield a unique look. The cost of this
option will vary greatly. Sometimes we get in wood and build this on our own; check to see what we may have on hand.
We choose wood that when layered together give an effective "Quarter-Sawn" grain pattern so we can build a strong
and beautiful stock. 4. Manufactured Birch Laminates:
We work with an industry leader in obtaining a broad range of laminate color choices and interesting combinations.
Each ply or layer is 1/16" thick and pre-stained/dyed before the entire block is laminated by heat and pressure.
Please see our extensive list below. If you don't see what you want, ask! |
|
|
|
|
| LAW483 M14H6 |
|
| Claro Walnut |

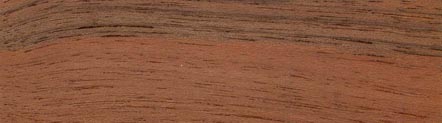

Most of the time we get in Claro Walnut; however,
sometimes we do order French Walnut or Black Walnut. Walnut is a deep rich brown beautiful wood and is great with
an oil finish. |
|
|
Maple is our "Blonde" wood of choice. It
can vary great in figure. We use the same clear coat on maple as we use on our laminates. |
|
Photo Not Available
|
Myrtle Wood is somewhere in between Walnut and
Maple colorwise. If you prefer a golden color Myrtle may be the one to choose. |
|
|
|
Photo Not Available
|
Our Extra Fancy Wood woods will have much more figure
and contrast than our standard grades. The figure can vary greatly. Tell us what you want and your price-range
and we find acceptable samples to meet your specifications. |
|
Photo Not Available
|
| LAW483 M14R1 Lightweight Replica Stock |
|
|
| Extra Fancy Maple with Clear Enamel Finish |
Our Extra Fancy Wood woods will have much more figure
and contrast than our standard grades. The figure can vary greatly. Tell us what you want and your price-range
and we find acceptable samples to meet your specifications. |
|
Photo Not Available
|
6. Extra Fancy Myrtle Wood Our Extra Fancy Wood woods will have much
more figure and contrast than our standard grades. The figure can vary greatly. Tell us what you want and your
price-range and we find acceptable samples to meet your specifications. |
|
Photo Not Available
|
7. Special Order Solid Wood We can get other woods besides Walnut,
Myrtle, and Maple, but they are outside our normal sources and can vary greatly in price. Tell us what you want and
your price-range and we find acceptable samples to meet your specifications. |
In-House Special
Lamanites
|
|
Photo Not Available
|
This is where we take several layers of the same wood
and make a lamanite. Each layers thickness and type of wood will affect the characteristics of the stock. As we
build some blanks and stocks we will post the results here to give you more ideas. |
|
Photo Not Available
|
This is where we take several layers from different
woods to make a lamanite. Each layers thickness and type of wood will affect the characteristics of the stock.
We pick contrasting wood that gives a nice effect. As we build some blanks and stocks we will post the results here to
give you more ideas. |
Manufactuered
Birch Laminate Color Options |
We have five categories of
colors 1. High Volume: We order these panels on
a regular basis and usually order more than one panel. These are very commonly requested. 2. Low Volume: We order these panels on a regular basis
and usually order only one panel. 3. Special Order:
We order these panels on an occassional basis or when an order is placed. These are combinations that we beleive
will have a broad appeal, but they are not commonaly requested. 4. Custom
Order +$50: We order these panels only when an order is placed. There is an additional
$50 charge up-front. Shown are some of the color combinations available, but more are possible. 5. Painted Laminate: Sometimes we will paint a stock for
asthetic reasons, sometimes by request. Here are the most common colors.
Note: Any color combination shown that has Charcoal can be ordered with Onyx as a subsitute. Just specify
that combination with Onyx on the end... i.e Wildfire v.s. Wildfire Onyx. Likewise, any combination shown that has Onyx
in it can be ordered with Charcoal instead... i.e. Bumblebee Onyx v.s. Bumblebee. |
|
|
|
|
| LAW483 M14P1 |
|
| Onyx Laminate |
Onyx is a Solid Black Veneer. This is a very
special process of creating extra penetration to the cell structure of the veneer, which creates a very rich and black material.
Ther can be some striking variation within the solid Onyx stocks; some are very even in color while others make have extra
dark and extra light streaks within the plys. |
|
|
9. Charcoal Silvertone (Pepper)
Charcoal Silvertone is our solid black lay-up of layered
veneer. This product is deep in depth and color and highlights the beauty of the charcoal and grey color combination |
|
|
| M14P1 Timber Wolf |
|
Timber Wolf is the result of having a several
layers of Charcoal wood that unexpectedly stained unevenly. This resulted in an unpredictable faded mix between Charcoal,
and Natural in each ply or layer. Unlike our Coffee and Buckskin Lamanites which are deliberately layered mixes
of similar colors, Timber Wolf fades within the layer rendering a unique color mix that has excellent "Camo"
properties. We originally ordered this thinking is was regular Charcoal, but now offer it as a separate color.
This is availble for a Limited Time Only while the suppy lasts. Be sure to order a matching handgaurd as we may
not be able to make you one later. |
|
|
Nutmeg Brown is our solid brown lay-up of veneer.
This material is a beautiful brown color, that often has hints of redish accents. We find the actual color is much lighter
than the manuafcturer's sample photo to the left. |
|
|
12. Copper Dust (Light Nutmeg Brown)
Copper Dust is a Light Nutmeg Brown. It
is an older discontinued version of Nutmeg. It's very nice color for those who want a stock that not too light
or too dark. The newer Nutmeg is much darker. We originally ordered this thinking is was regular Nutmeg, but now
offer it as a separate color. This is availble for a Limited Time Only while the suppy lasts. Be sure to
order a matching handgaurd as we may not be able to make you one later. |
|
Photo Not Available
|
Natural Birch is unstained lamanite. The
clear coat makes this a very light blonde color that many prefer. If Nutmeg Brown is too dark, this may be your
desired color of choice. |
|
Photo Not Available
|
15. Natural Birch, Stained Darker +$25 Many customers prefer the strength of the lamanite
wood, but want a brown color that is different, often darker than either the Natural, Nutmeg Brown, or Winewood options.
If you want a color that's closer to Walnut, but deffinately want lamanite, choose this option and we can discuss the stain's
shade. |
|
|
|
|
This is a solid wine-colored veneer. It's a
dep reddish brown color that is reminissant of the Winchester Red color. |
|
|
Green Mountain Camo is a combination of alternating
Olive, Nutmeg Brown and Charcoal veneer. This is one of the oldest and most popular color combination's in the sporting industry
today. |
|
|
Olive is the green color in this picture.
We offer it as a SOLID OLIVE. (SHOWN IS: Olive Shade, the combination of alternating layers of our Olive and Charcoal
veneer; it's a Special Order) |
|
|
|
|
Royal Jacaranda is a combination of Nutmeg Brown,
Winewood and Charcoal veneer. This is an extremely popular color supplied the custom rifle and gunstock industry. |
|
|
Royal Mountain Camo is a combination of alternating
our Winewood, Olive, Nutmeg Brown and Charcoal veneer. This is a twist to the traditional Green Mountain Camo and Royal Jacaranda
material. |
|
|
Royal Camo is a combination of Nutmeg Brown,
Winewood and Natural veneer. This pattern has an incredibly stunning look on any finished stock. |
|
|
Autumn is a combination of our dynamic
winewood and nutmeg brown alternating combination. This is an extremely powerful color combination with a braod appeal
for those who want a Walnut type look. |
|
|
Coffee is a combination of alternating
Nutmeg Brown and Charcoal Silvertone. This is great for those who like both colors but only want one stock. |
|
|
Buckskin is a combination of alternating
our Charcoal, Brown and Natural veneer. This product has a very natural look to it. |
|
|
Camo Supreme is the combination of alternating
Olive, Nutmeg Brown and Natural Birch Veneer. This is an exceptionally popular color combination for the custom game call
industry and is gorgeous as a finished rifle stock. |
|
|
Olive Shade is the combination of
alternating layers of our Olive and Charcoal veneer. This is an extremely powerful color combination and is especially
stunning on a laminated gunstock. |
|
|
Desert Camo is a combination of alternating
our popular Winewood, Orange and Nutmeg Brown veneer. This color combination resembles a southwest sunset. |
|
|
Bumble Bee Onyx is the combination
of Onyx and Yellow. This is a "Look at Me" combination that is sure to attact attention. The alternating
Yellow-Black color scheme is a classic for cars and motorcycles; we think it looks great on a rifle as well. |
|
|
|
|
Americana is the combination of our Red,
Natural and Blue veneer pressed together. The true color of American Spirit all made in the U.S.A. |
|
|
Aqua Fire is a combination of alternating
Charcoal, Orange and Turquoise veneer. This combination is also available with our Onyx dark black veneer as Aqua
Fire Onyx. |
|
|
This combination is our Winewood and Onyx
alternating and is absolutely one of the most beautiful color combinations found in any market. This color combination is
quickly becoming one of the most popular gunstock color options anywhere in North America. |
|
|
Blue Angel is a combination of alternating
our Blue and Charcoal veneer. This product is also available as Blue Angel Onyx with our Solid Black Onyx Veneer as
an option. |
|
|
Buckskin Blue is a combination of alternating
our Turquoise, Nutmeg Brown and Natural Dark veneer. This is an extremely dynamic color combination when turned into a finished
rifle stock. |
|
|
Carribean Waves is a combination of alternating
our Royal Blue, Turquoise and Natural veneer. |
|
|
Dark Aqua is a combination of alternating
Turquoise and Charcoal veneer. All colors that have regular charcoal are also available with our solid black Onyx veneer
as well. |
|
|
Dark Knight is a combination of alternating
our Purple and Charcoal veneer. This product is available as Dark Knight Onyx with our Onyx solid black veneer
as another option. |
|
|
Ember Glow is a combination of Nutmeg
Brown, Charcoal and Orange alternating. This combination has become a very popular product in the air-gun industry. |
|
|
Fighting Irish is a combination of
our Royal Blue and Yellow veneer. Fighting Irish was inspired collegiate colors and truly highlights a beautiful dynamic. |
|
|
GEM Wood is a customer based inspired
color that encompasses Orange, Turquoise, Royal Blue and Purple veneer alternating together. When finished as rifle
stock this is one of the most dynamic color combinations on the market today. |
|
|
Holiday Cheer is a stunning combination
of Green and Red Veneer alternating and is stunning as a finished product. |
|
|
John Deere is a combination of alternating
our Green and Yellow veneer. |
|
|
Mickey D is a combination of alternating
our Red and Yellow veneer. This is such a bright and vibrant color combination that highlights many collegiate and sporting
teams domestically |
|
|
Ocean Waves Charcoal is a combination of
alternating our Charcoal, Turquoise and Purple veneer. This product is also available as Ocean Waves Onyx with our
Solid Black Onyx veneer as an option. |
|
|
Patriot is a combination of our alternating
Red and Royal Blue veneer. This is an dynamic and vibrant color combination that provides a patriotic dimension to it. |
|
|
Premier Camo is a special combination
of alternating layers of our Green, Orange, Lime and Charcoal veneer. This is flashy version of camo for those who want something
different. This product is also available as Premier Camo Onyx with Solid Black Onyx as an option. |
|
|
Red Seas is a combination of alternating
Charcoal, Green and Red veneer. This product is also available as Red Seas Onyx with our Solid Onyx veneer as an option. |
|
|
Royal Crown is a combination of our alternating
Green, Turquoise and Winewood veneer. This is an exceptional color for thos who want something unique and flashy. |
|
|
Ruby Ridge is a combination of alternating
our Red, Charcoal and Natural veneer. This product is also available as Ruby Ridge Onyx with solid Black Onyx veneer
as an option |
|
|
Safari is a combination of our Turquoise, Nutmeg
Brown and Charcoal veneer alternating throughout. This product is also available as Safari-Onyx with Solid Black Onyx
Veneer as an option replacing regular charcoal. |
|
|
Wild Fire is a combination of alternating our Orange
and Charcoal Veneer. |
|
|
|
Photo Not Available
|
|
|
Photo Not Available
|
| M14H6 Field Match, Coyote |
|
Coyote is an elusive color. Some customers see
Tan, others see Green. It's like a coffee color with a greenish tint. This is a very popular color and is
great in many environments. |
|
Photo Not Available
|
Olive is your basic military green. |
|
Photo Not Available
|
The Desert Tan we have is a little lighter
than I would like. It's almost a flesh color depending on the lighting. |
|
Photo Not Available
|
| M14T5R Range Match, Earth Brown |
|
The Earth Brown is like a dark Coyote.
Depending on the lighting it may look greenish or brownish. it's a popular choice. |
|
Photo Not Available
|
| M14H6 Field Match, Dark Gray |
|
Our Dark Grey is like a parkerized color,
almost black. It's a good choice if you don't want it black, but do want it dark. |
|
Photo Not Available
|
Our light gray is also a gun metal type
color. |
|
Photo Not Available
|
| M14P1 Field match, Custom Camoflauge |
|
We used Olive and Coyote as the base colors
with a loose template for both fading and clear contrast, then accented with Black and Dark Gray. It gives a good break-up.
We can do an effective camo job, but do not pretent to be a camo artist. Tell us what you're operating area and
intrests are, and we'll come up with an effective pattern. |
|
Photo Not Available
|
This may cost a bit extra, but we can paint
nearly any color desired. Let us know what you want, we'll go from there. |
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
Inovative M14 Sporting Stocks
Pictures shown with rifles, but the rifles and accessories are not included in a stock purchase.
Powered by Register.com
|
|
|
|
